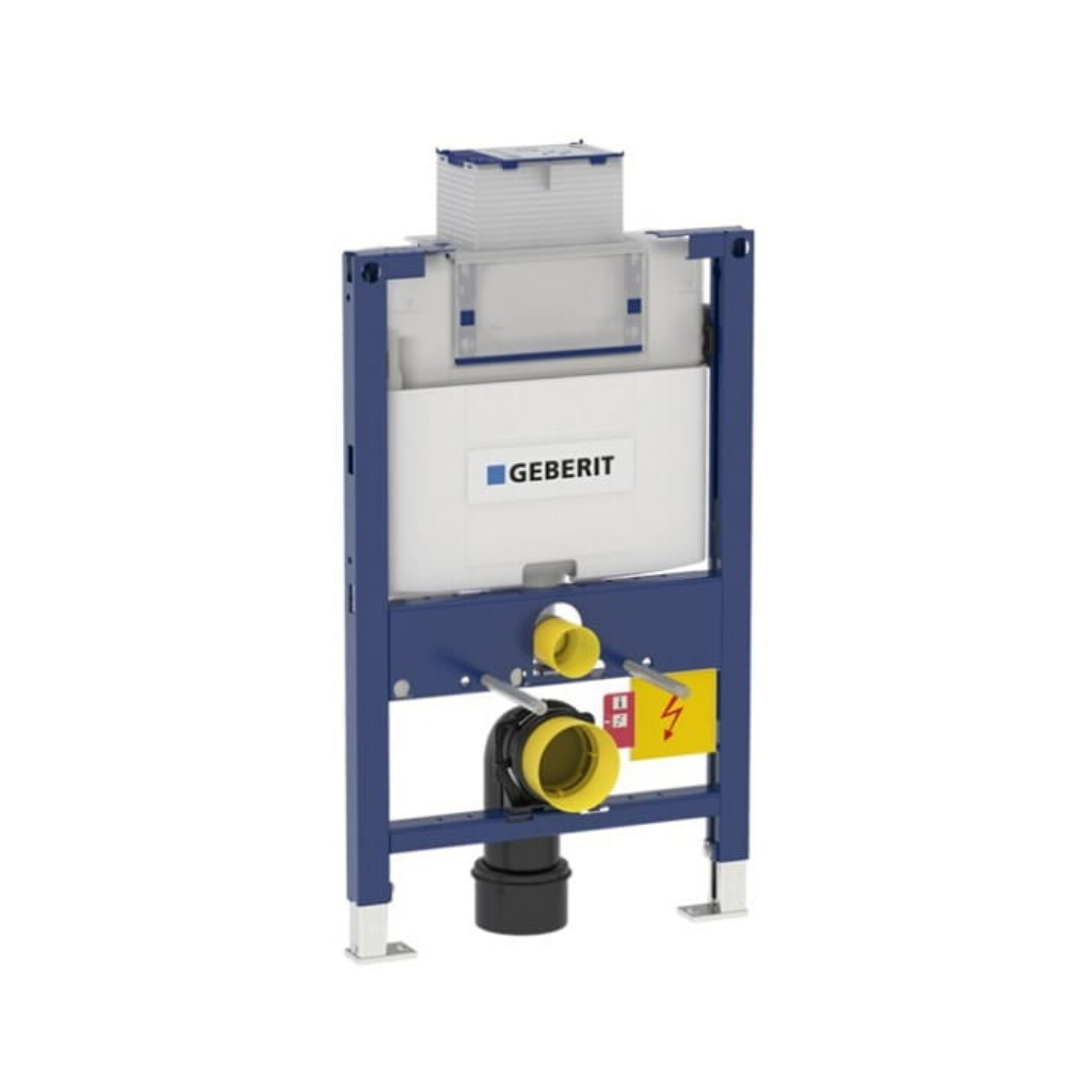

Geberit Omega 82cm Duofix Cistern Installation Frame

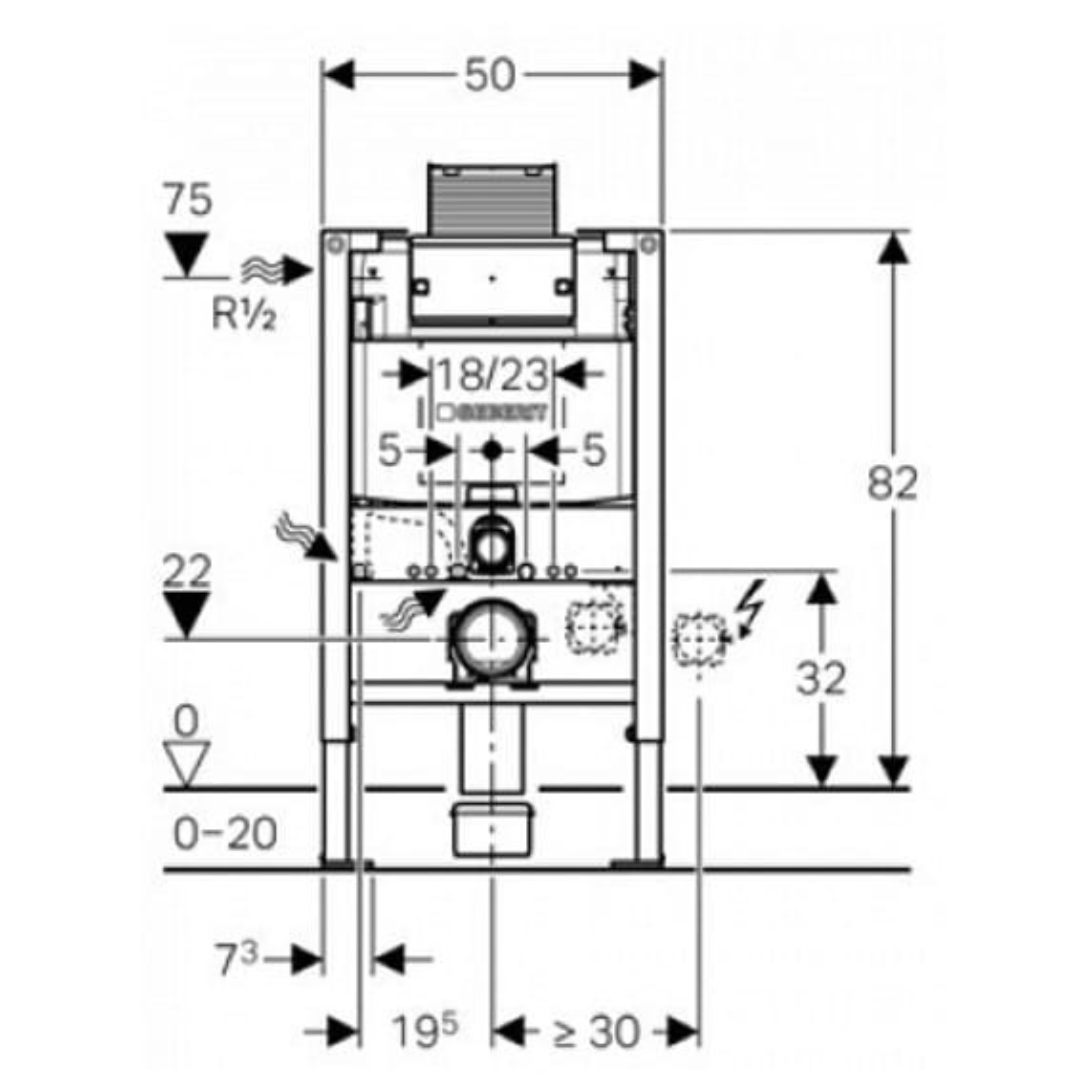

Geberit Duofix installation element for wall-hung toilets, 82 cm, with Omega concealed cistern 12 cm

Additional information:

Possibility to set 4 and 2 liter flush

Technical data:

Pressure 10-1000 kPa
Maximum water temperature 25 °C
Factory settings for flushing volume 6 and 3 l
Large volume flushing adjustment range 4.5 / 6 / 7.5 l
Small volume flush adjustment range 3-4 l
Design flow 0.11 l/s
Minimum pressure flow for the design flow of 50 kPa

More Info:

For light installation
For installation in installation walls with partial room height
For installation in Geberit Duofix system walls not at the full height of the room
For wall-hung toilet bowls with connection dimensions in accordance with EN 33:2011

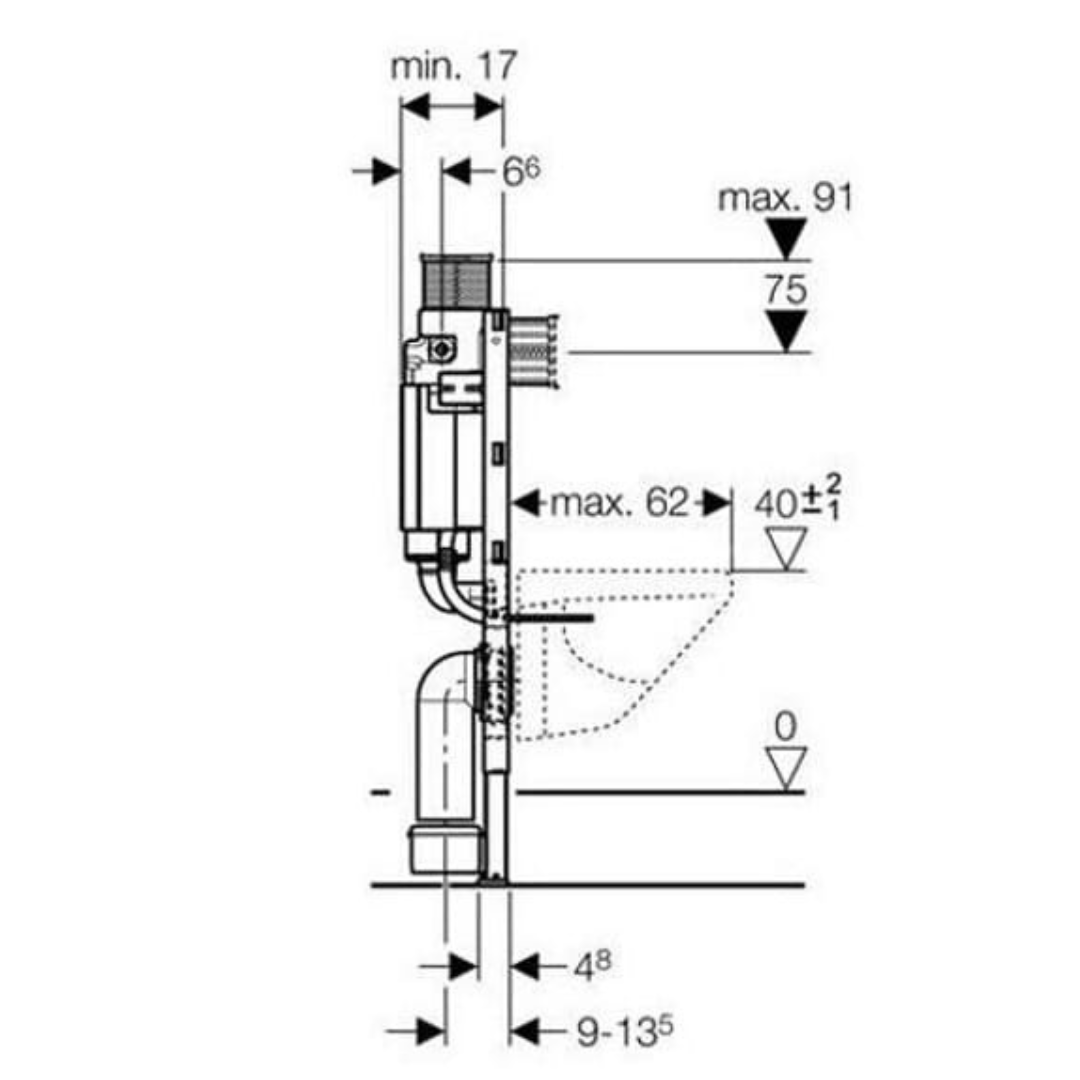

For wall-hung toilet bowls up to 62 cm long
For dual flushing
For height of floor layers 0–20 cm

Features:

Self-supporting frame, powder coated.
Frame with a ø 9 mm drilled hole for mounting in a wooden structure.
Prepared frame for brackets in toilet bowls with a small contact surface.
Brackets for mounting legs, galvanized.
Brackets for mounting legs with adjustable position in the range of 0–20 cm.
Brackets for mounting legs with self-locking function
Reversible
feet Depth of feet suitable for installation in U-profiles UW 50 and UW 75 and Geberit Duofix system rails
Fixing of the drain elbow without the use of tools with the possibility of adjusting the depth in 6 positions, adjustment range of 45 mm
Acoustic-insulated connection elbow mounting
Concealed cistern with activation from top or front
Concealed cistern with anti-dew insulation
In factory settings, re-flushing is possible immediately
Water connection on the left side or rear left
Protective casing of the inspection opening protects against moisture and dirt
