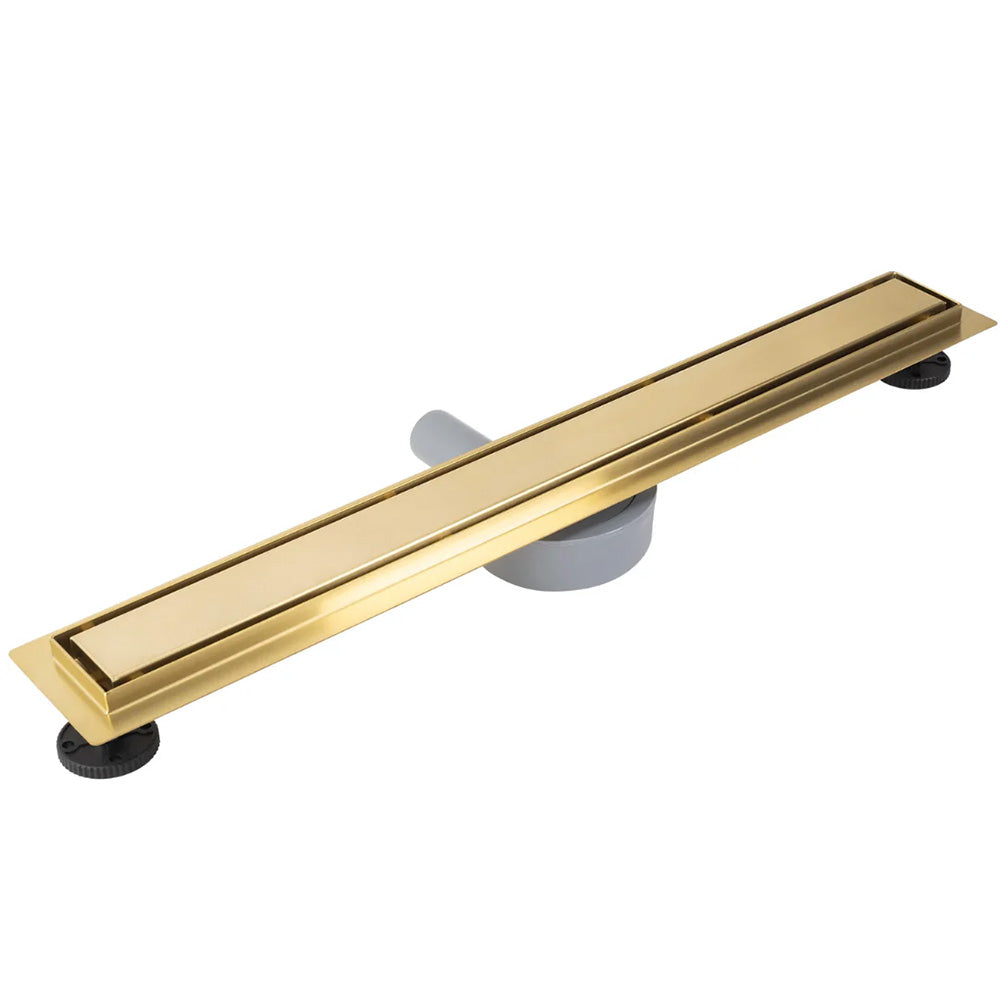

A linear drain (shower gully) is an ideal solution in a modern bathroom with tiles. It is intended for draining water from shower cubicles and open shower spaces. The aesthetic appearance and simplicity are undoubted advantages of linear outflows.

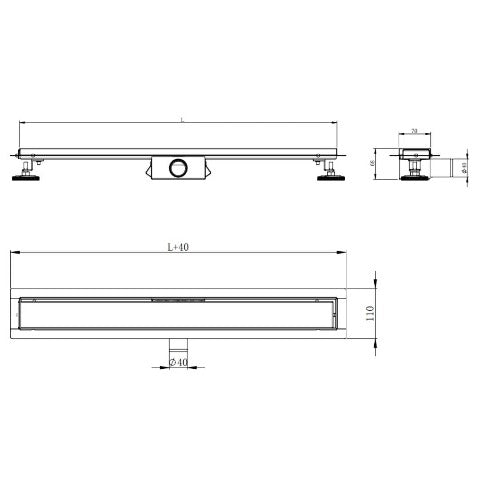

Dimensions:
- Depth of 58mm
- Material: Stainless steel
- Length: from 500 to 900mm
- Steel - AISI 304
- Water throughput: 60l / minute
- Siphon type: 360° rotating
Product Specifications:
- Gutter and grate steel thickness of 1.2mm
- Linear drainage (full package)
- Feet and sealing collar included
- Grid for tiles - width 50 mm
- The outflow is equipped with a collar around 2 cm, which facilitates laying the tiles
- Low steel siphon with the possibility of cleaning from the top
- Mounting depth only 52 mm
The set includes:
- A drainage channel with a mounting flange
- Cover plate (optional for pasting tiles)
- Siphon with 40/50 mm outlet with dirt trap with gasket
- Feet for levelling with the possibility of disassembly
- Sealing collar
- Installation instructions
